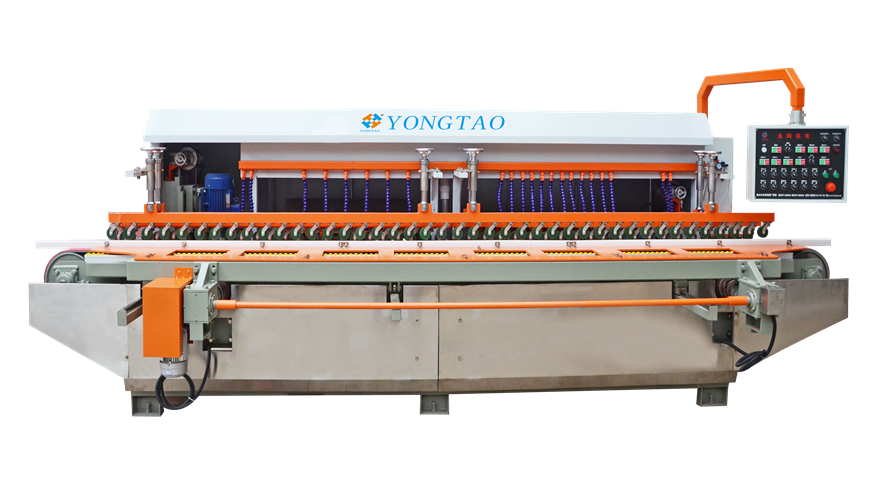

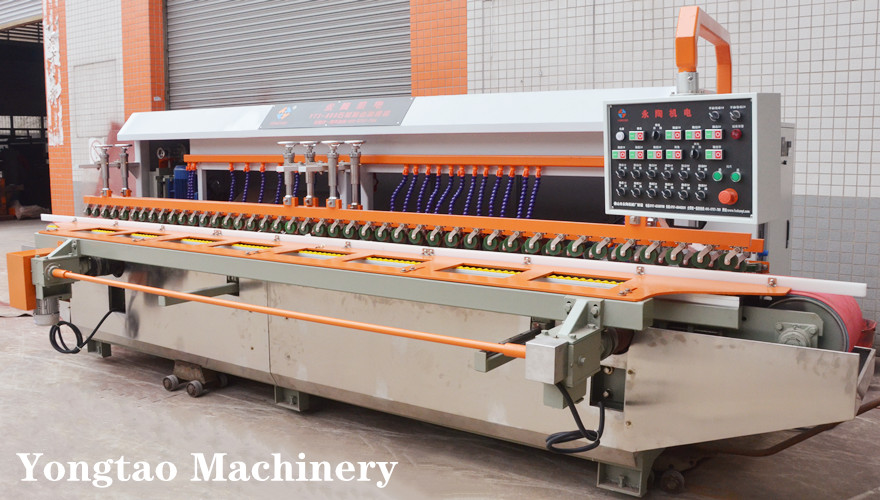

YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
Yongtao 800mm stone flat bevel edge polishing machine,can process flat and beveled edges of marble,7 heads for flat edge polishing,8 heads for beveled edge polishing
Product introduction
Description of YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine is one of the latest horizontal stone polishing machine and automatic beveling machine by Yongtao machinery. The machine can process artificial stone, marble, granite, quartz etc. It has 1 piece 1diamond grind wheel and 6 pieces polishing wheel to polish flat edge. At the behind of machine has 2 pieces of 45 degree chamfer wheels and 6 pieces of chamfer polishing wheels to make 45 degree bevel edge. The polishing head drive by pneumatic device.so we suggest that prepare a air compressor if the factory didn’t have any compressor.The machines have the advantage of reasonable designing, simple operation, easy to maintain, high highly speed of output, are popular by lots of stone processing factory. We can provide competitive bevelling machine price for you.
Stone Flat Bevel Edge Polisher:
Technical Parameter of YSMDP-800 (1+6)-(2+6) Stone Flat Bevel Edge Polishing Machine
Machine specifications
| Numbers of squaring head | 1pc |
|---|---|
| Motor power | 3kw |
| Numbers of chamfer head | 2个 |
| Motor power | 3kw |
| 45 degree chamfer polishing | 6个 |
| Diameter of polishing wheel | 125mm |
| Chamfer motor power | 2.2kwX3pcs |
| Numbers of flat polishing head | 6个 |
| Polishing head motor | 2.2kwX3pcs |
| Processing width | 80-800mm |
| Processing thickness | 10-60mm |
| Processing speed | 1—5.0m/min |
| Total power | 20.05kw |
| Electric consumption | 18kw/H |
| Water consumption | 450L/min |
| Size of machine | 4.20m×2.00m×1.80m |
| Weight | 3000kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
